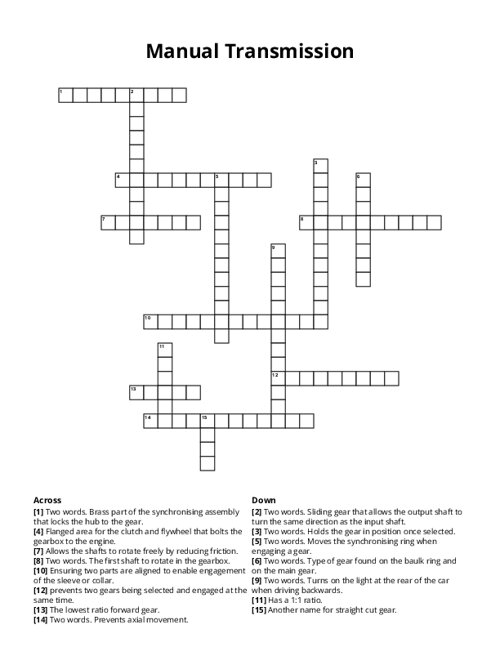

Manual Transmission Crossword Puzzle

Download and print this Manual Transmission crossword puzzle. Use a pencil or pen to complete the puzzle by filling in the blanks. The completed answers are included, so you can easily check your progress.

PDF will include puzzle sheet and the answer key.

BAULK RING : Two words. Brass part of the synchronising assembly that locks the hub to the gear.
SELECTOR FORK : Two words. Moves the synchronising ring when engaging a gear.
SPUR : Another name for straight cut gear.
FIRST : The lowest ratio forward gear.
SYNCHRONISING : Ensuring two parts are aligned to enable engagement of the sleeve or collar.
BELLHOUSING : Flanged area for the clutch and flywheel that bolts the gearbox to the engine.
THRUST WASHER : Two words. Prevents axial movement.
DETENT SPRING : Two words. Holds the gear in position once selected.
BEARING : Allows the shafts to rotate freely by reducing friction.
REVERSE GEAR : Two words. Sliding gear that allows the output shaft to turn the same direction as the input shaft.
DOG TOOTH : Two words. Type of gear found on the baulk ring and on the main gear.
REVERSE SWITCH : Two words. Turns on the light at the rear of the car when driving backwards.
INPUT SHAFT : Two words. The first shaft to rotate in the gearbox.
INTERLOCK : prevents two gears being selected and engaged at the same time.
FOURTH : Has a 1:1 ratio.
