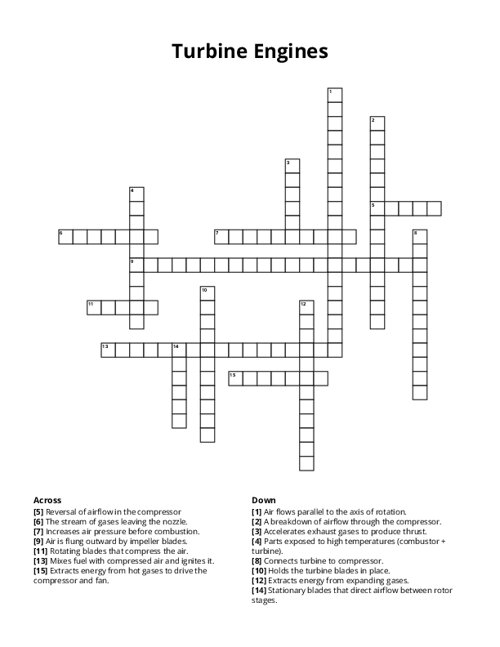

Turbine Engines Crossword Puzzle
Download and print this Turbine Engines crossword puzzle. Use a pencil or pen to complete the puzzle by filling in the blanks. The completed answers are included, so you can easily check your progress.
PDF will include puzzle sheet and the answer key.
Related puzzles:
More Tools / Equipment Crossword Puzzles
Engineering Materials
Carpentry
Basic Engines
Steering and Suspension
Tools in Industrial Arts
Browse all Tools / Equipment Puzzles
QUESTIONS LIST:
- combustion chamber : mixes fuel with compressed air and ignites it.
- compressor stall : a breakdown of airflow through the compressor.
- turbine blade : extracts energy from expanding gases.
- nozzle : accelerates exhaust gases to produce thrust.
- stator : stationary blades that direct airflow between rotor stages.
- turbine disk : holds the turbine blades in place.
- compressor : increases air pressure before combustion.
- axial flow compressor : air flows parallel to the axis of rotation.
- turbine shaft : connects turbine to compressor.
- centrifugal compressor : air is flung outward by impeller blades.
- surge : reversal of airflow in the compressor
- turbine : extracts energy from hot gases to drive the compressor and fan.
- rotor : rotating blades that compress the air.
- hot section : parts exposed to high temperatures (combustor + turbine).
- exhaust : the stream of gases leaving the nozzle.
