Simple and Compound Machine Crossword Puzzle

Download and print this Simple and Compound Machine crossword puzzle.

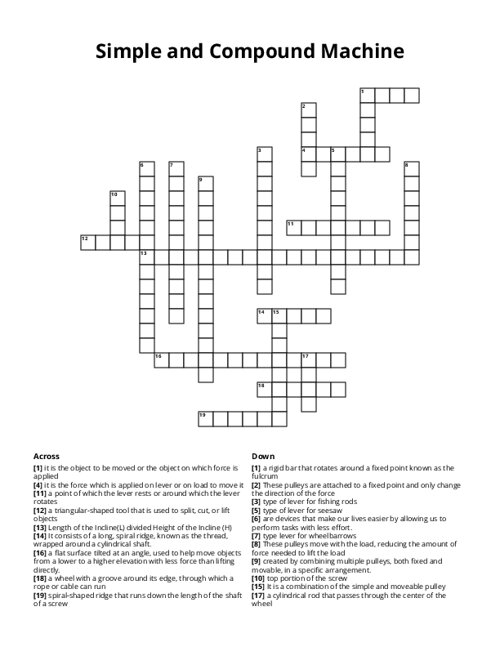

Simple and Compound Machine Crossword Puzzle

PDF will include puzzle sheet and the answer key.


Edit Print PDF - Letter PDF - A4

Browse all Physics Puzzles

QUESTIONS LIST:

  • lever: a rigid bar that rotates around a fixed point known as the fulcrum
  • first class: type of lever for seesaw
  • second class: type lever for wheelbarrows
  • third class: type of lever for fishing rods
  • pulley: a wheel with a groove around its edge, through which a rope or cable can run
  • fixed: these pulleys are attached to a fixed point and only change the direction of the force
  • compound: it is a combination of the simple and moveable pulley
  • movable: these pulleys move with the load, reducing the amount of force needed to lift the load
  • inclined plane: a flat surface tilted at an angle, used to help move objects from a lower to a higher elevation with less force than lifting directly.
  • screw: it consists of a long, spiral ridge, known as the thread, wrapped around a cylindrical shaft.
  • head: top portion of the screw
  • thread: spiral-shaped ridge that runs down the length of the shaft of a screw
  • wedge: a triangular-shaped tool that is used to split, cut, or lift objects
  • axle: a cylindrical rod that passes through the center of the wheel
  • simple machine: are devices that make our lives easier by allowing us to perform tasks with less effort.
  • fulcrum: a point of which the lever rests or around which the lever rotates
  • effort: it is the force which is applied on lever or on load to move it
  • load: it is the object to be moved or the object on which force is applied
  • mechanical advantage: length of the incline(l) divided height of the incline (h)
  • block and tackle: created by combining multiple pulleys, both fixed and movable, in a specific arrangement.
